LED Display Pre-Installation Checklist for Retail Stores

A retail LED display looks simple from the floor. It is not. The screen itself is the easiest part of the project. The real work happens before the first panel is unboxed: verifying the wall, the power, the environment, and the access routes. A weak pre-installation check can delay the build, void warranty terms, or force a rework that costs more than the display itself.

This checklist is built for professional buyers and engineers. It assumes the display type is already selected. It focuses on what must be true at the site before the installation team arrives.

1. Confirm the display type and panel count

Start with the product specification sheet and the approved layout drawing. The number of panels, the pitch, the bezel width, and the total dimensions must match the approved design. A small error here compounds during installation.

Write down the following:

1. Model number and pitch.
2. Total panel count per row and column.
3. Total width and height in millimeters.
4. Bezel width and joint gap.
5. Weight per panel.
6. Recommended mounting method.
7. Operating voltage and power consumption per panel.
8. Required refresh rate and brightness level.

Compare these numbers to the site layout. If the drawing shows a 12 by 8 grid but the quote lists 96 panels, stop. Resolve the discrepancy before the hardware ships.

Red flags:

• The approved drawing and the purchase order do not match.
• The panel weight is not stated in the datasheet.
• The mounting method is “recommended” but the site structure is unknown.
• The brightness is specified for a dark room but the site is a sunlit storefront.

2. Verify structural support and load paths

This is the highest-risk item on the list. The wall or ceiling must carry the dead load of the panels, the live load of the mounting hardware, and the dynamic load of any future maintenance activity.

For retail interiors, the display may sit on a brick, block, concrete, or metal stud wall. Each substrate behaves differently. Brick and block need verified anchor depth and grout condition. Metal studs need the correct screw type and minimum engagement. Plasterboard alone cannot support a commercial LED screen without a backing plate or a structural anchor system.

Before the install team arrives, complete these checks:

• Identify the substrate type with a probe or a sample cutout.
• Confirm the anchor type and depth with the structural engineer or the mounting supplier.
• Check for hidden services: pipes, ducts, conduit, or cables behind the wall.
• Verify the load path to the floor or ceiling structure.
• Confirm the anchor torque values in the installation manual.
• Check for corrosion, moisture damage, or previous failed anchors.

If the wall is non-structural or uncertain, do not proceed with the standard mounting plan. Use a backing plate, a steel frame, or a dedicated support beam. The cost of a proper frame is small compared to the cost of a screen falling or a wall failing.

Red flags:

• The wall is hollow and the substrate is unknown.
• The previous tenant installed fixtures that left damaged anchors.
• The display is near a ceiling drop with no access to the structure above.
• The mounting supplier cannot provide a load calculation.
• The wall is wet, cracked, or shows signs of water ingress.

3. Check power, cabling, and electrical capacity

The display needs stable power. The retail environment may have dedicated circuits, shared circuits, or a mix of both. The pre-installation check must confirm that the circuit can handle the peak load without tripping.

Write down the following:

• Circuit breaker rating and location.
• Voltage supply at the wall socket or terminal block.
• Total power consumption of the display at full brightness.
• Cable gauge and length for the power run.
• Grounding point and continuity.
• Emergency shut-off location.
• Whether the power feed is on a dedicated circuit or shared with other loads.

For larger retail displays, the power run may need a dedicated circuit. If the existing circuit is shared with refrigeration, POS terminals, or lighting, the display may cause nuisance tripping or voltage sag. This can corrupt the video signal or damage the power supply units.

Cable routing must be planned. The power cable should not run alongside the video cable in the same conduit unless the cable is shielded and the separation distance meets the manufacturer’s guidance. The cable path must avoid heat sources, moving doors, and areas with foot traffic.

Red flags:

• The circuit is shared with high-draw equipment.
• The power cable length is not measured.
• The grounding point is not accessible.
• The emergency shut-off is behind the display or in a locked room.
• The cable route crosses a fire-rated wall without a fire stop.

4. Measure the environment and viewing conditions

The display must be sized and positioned for the retail environment. The pre-installation check must confirm that the viewing distance, ambient light, and maintenance access are correct.

Measure the following:

• Distance from the primary viewing zone to the screen.

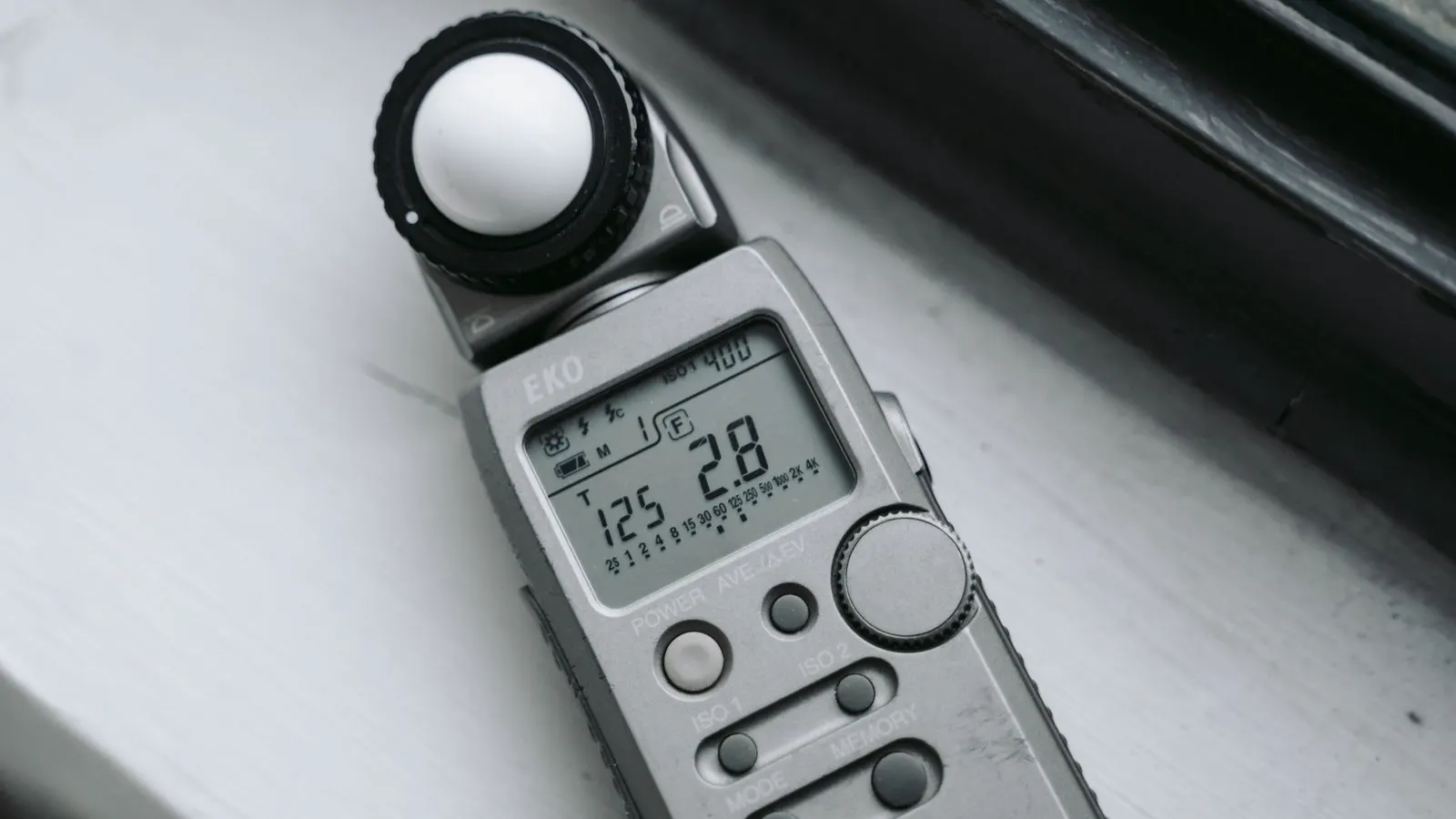

• Ambient light level at the screen surface in lux.
• Angle of view from the main aisle.
• Clearance for maintenance access on all four sides.
• Clearance for cable routing and heat dissipation.
• Temperature and humidity range in the display zone.

The viewing distance affects perceived pixel pitch. A screen that looks sharp from ten meters may look blocky from three. The ambient light affects the required brightness. A screen in a north-facing window will need higher brightness than one in a shaded back room.

Maintenance access is often overlooked. The technician needs room to reach the rear of the panels, to remove and replace a faulty unit, and to access the power and data connections. If the display is in a corridor or against a shelving unit, the access zone must be defined and protected.

Red flags:

• The viewing distance is shorter than the recommended minimum.
• The ambient light is very high and the display brightness is fixed.
• The maintenance access zone is blocked by shelving or fixtures.
• The display is in a temperature-controlled zone with a different range than the display’s rated operating range.
• The heat dissipation area is blocked by a ceiling or a wall.

5. Review documentation, warranty, and safety requirements

The pre-installation file must contain all documents needed for the build and for future maintenance. Without these documents, warranty claims become difficult and maintenance becomes guesswork.

The file should include:

• The purchase order and product specification.
• The approved layout drawing.
• The structural calculation or sign-off.
• The electrical load calculation.
• The installation manual and torque specifications.
• The warranty terms and conditions.
• The safety data sheet for the display and mounting hardware.
• The contact list for the supplier, integrator, and building manager.

The warranty terms must be checked carefully. Some warranties are void if the display is not installed by a certified technician. Some require the mounting structure to be certified by a structural engineer. Some exclude damage from power surges if the display is not on a dedicated circuit.

The safety requirements must also be confirmed. The display may need a fire rating if it is installed in a public area. The mounting hardware must meet the local building code. The installation must not block emergency exits, fire extinguishers, or sprinkler heads.

Red flags:

• The warranty terms are not in the purchase order.
• The mounting hardware is not covered by the display warranty.
• The display is installed in a way that blocks an emergency exit.
• The safety data sheet is missing.
• The building manager has not approved the installation.

6. Plan the installation sequence and crew access

The pre-installation checklist is not complete until the installation sequence is defined. The crew needs to know the order of operations, the access points, and the logistics for moving the panels.

Write down the following:

• The order of panel installation.
• The access point for the crew and the equipment.
• The method for lifting and moving the panels.
• The location for the staging area.
• The method for protecting the floor and surrounding fixtures.
• The schedule for the installation.

The panels should be staged in the correct order. This reduces the time the crew spends searching for the right unit and reduces the risk of damage during handling. The staging area must be clean, dry, and at the correct temperature. The floor must be protected from the weight of the panels and the equipment.

The crew access must be defined. If the display is in a high location, a lift or a scaffold is needed. If the display is in a tight space, the crew must be able to reach the panels without damaging the surrounding fixtures. The schedule must account for the time needed for the structural work, the electrical work, and the final calibration.

Red flags:

• The staging area is wet or dirty.
• The crew access is blocked by other work.
• The schedule does not include time for structural work.
• The panels are stored in a temperature-controlled zone with a different range than the display’s rated operating range.
• The crew does not have the correct lifting equipment.

7. Final pre-installation audit

Before the crew arrives, complete a final audit. This is the last chance to catch a problem without the cost of rework.

Review the following:

1. The approved drawing and the site layout.
2. The structural support and load path.
3. The power circuit and cable routing.
4. The environmental conditions and viewing distance.
5. The documentation and warranty terms.
6. The installation sequence and crew access.
7. The safety requirements and building approvals.

If any item is not resolved, do not proceed. A small delay now is cheaper than a failed installation later. The pre-installation checklist is a control point. Use it.

Red flags:

• Any item on the list is unresolved.
• The site conditions have changed since the survey.
• The building manager has not given final approval.
• The crew is not ready for the installation.
• The documentation is incomplete.

Common mistakes and how to avoid them

The most common mistake is skipping the structural check. The wall looks solid. The anchor is easy. The display goes up. Three months later, the wall fails or the anchor pulls out. The cost of the repair is far higher than the cost of a proper structural assessment.

The second most common mistake is underestimating the power load. The display works for a week. Then the circuit trips. The display reboots. The video signal corrupts. The power supply units fail. The warranty is void because the display was not on a dedicated circuit.

The third most common mistake is ignoring the maintenance access. The display is installed. The panels are tight. The cables are hidden. A panel fails. The technician cannot reach it. The repair takes days instead of hours. The display is dark while the store is open.

The fourth most common mistake is poor documentation. The warranty terms are lost. The torque specifications are missing. The structural calculation is not in the file. A problem occurs. The warranty claim is denied. The repair is paid by the store.

The fifth most common mistake is poor planning. The crew arrives. The site is not ready. The power is not live. The structural work is not done. The schedule slips. The cost increases. The store is not ready for the launch.

Each of these mistakes is avoidable. The pre-installation checklist is the control point. Use it.

How to use this checklist

This checklist is a control point. It is not a substitute for professional engineering. It is a list of items that must be true before the installation begins.

Print the checklist. Fill it out. Sign it. Store it in the project file. Review it with the crew before they arrive. Review it again after the installation is complete.

The checklist is a tool. Use it to protect the investment, protect the warranty, and protect the people in the store.

A retail LED display is a long-term asset. It will be looked at, used, and maintained for years. The pre-installation work is the foundation. Get it right.
